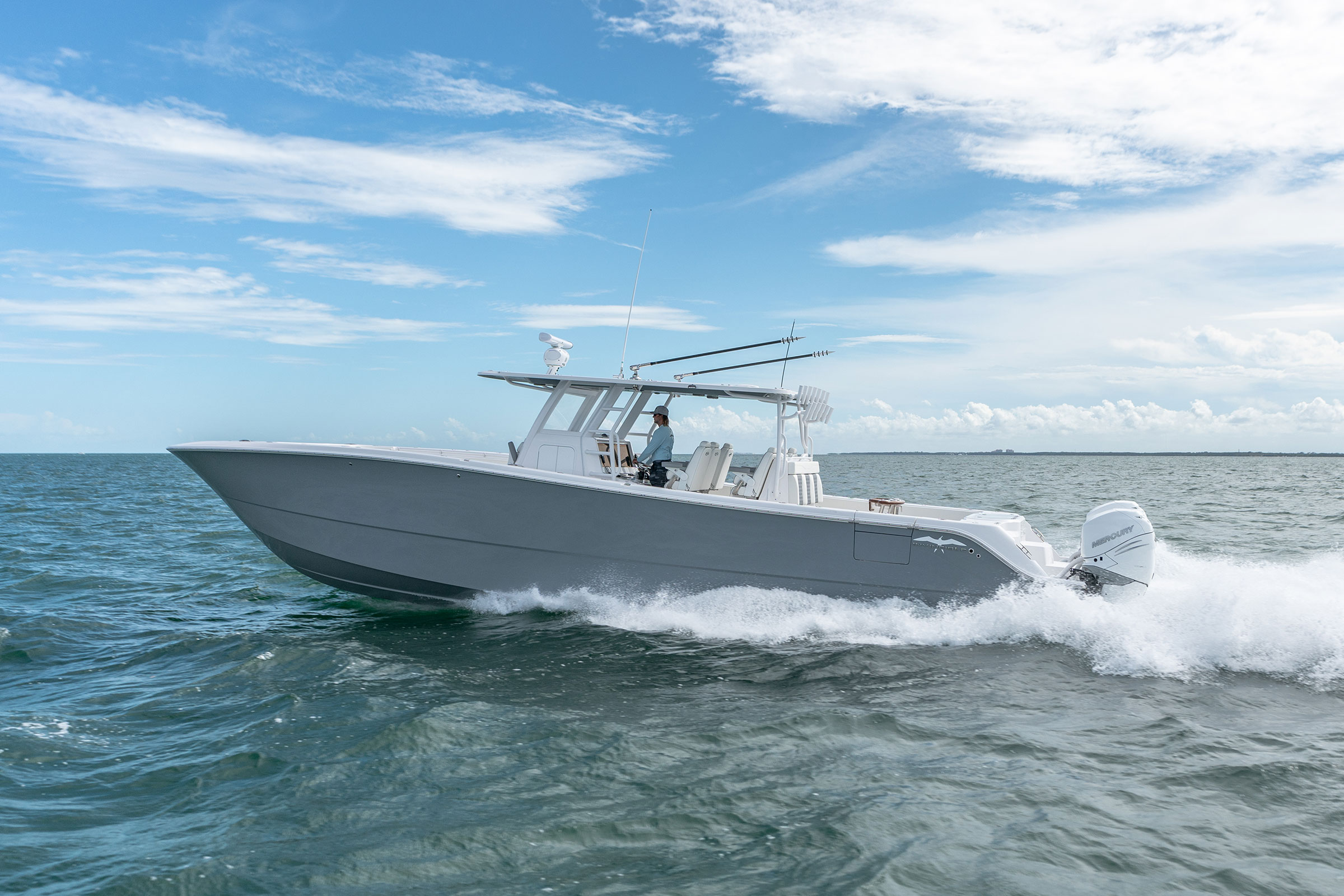

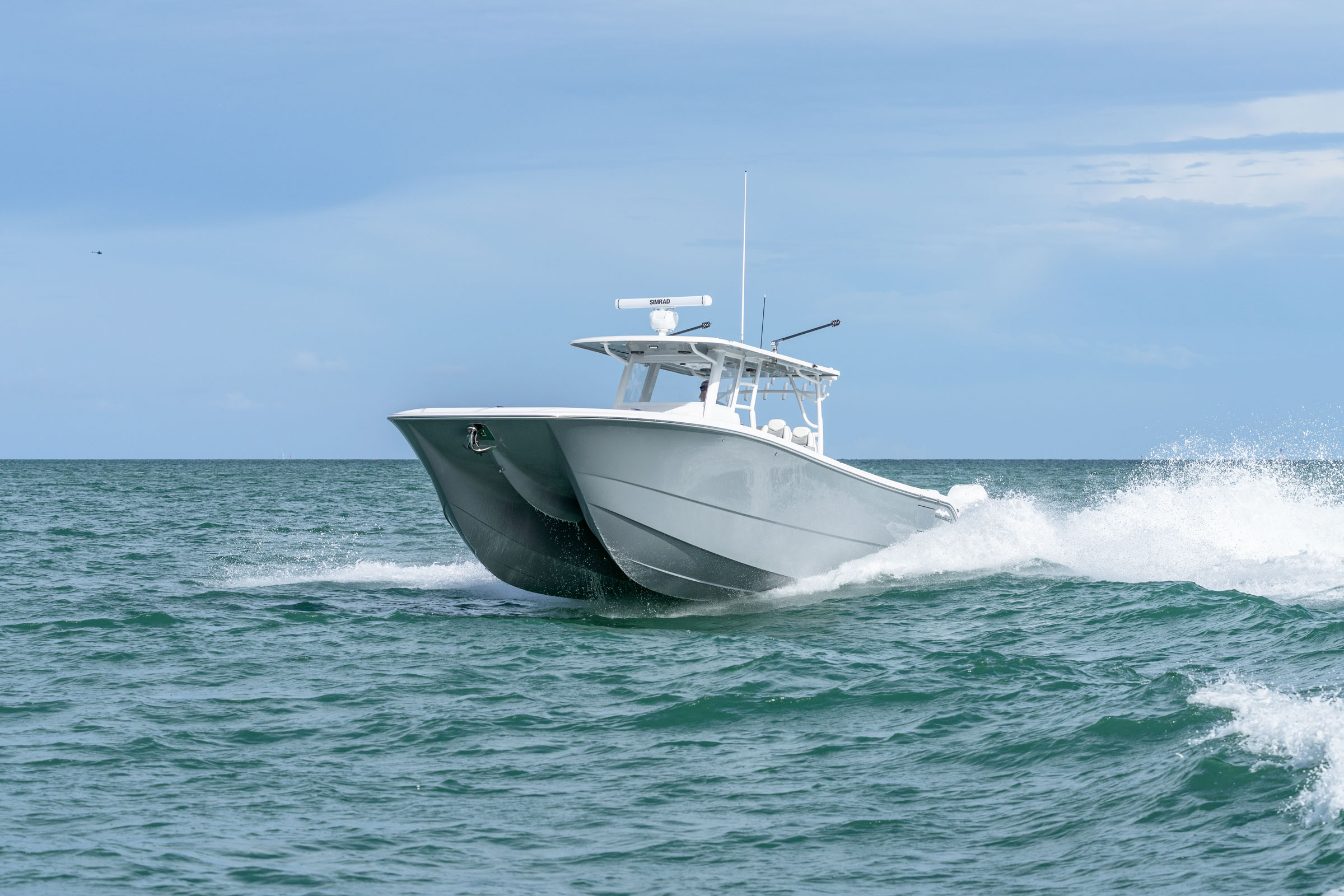

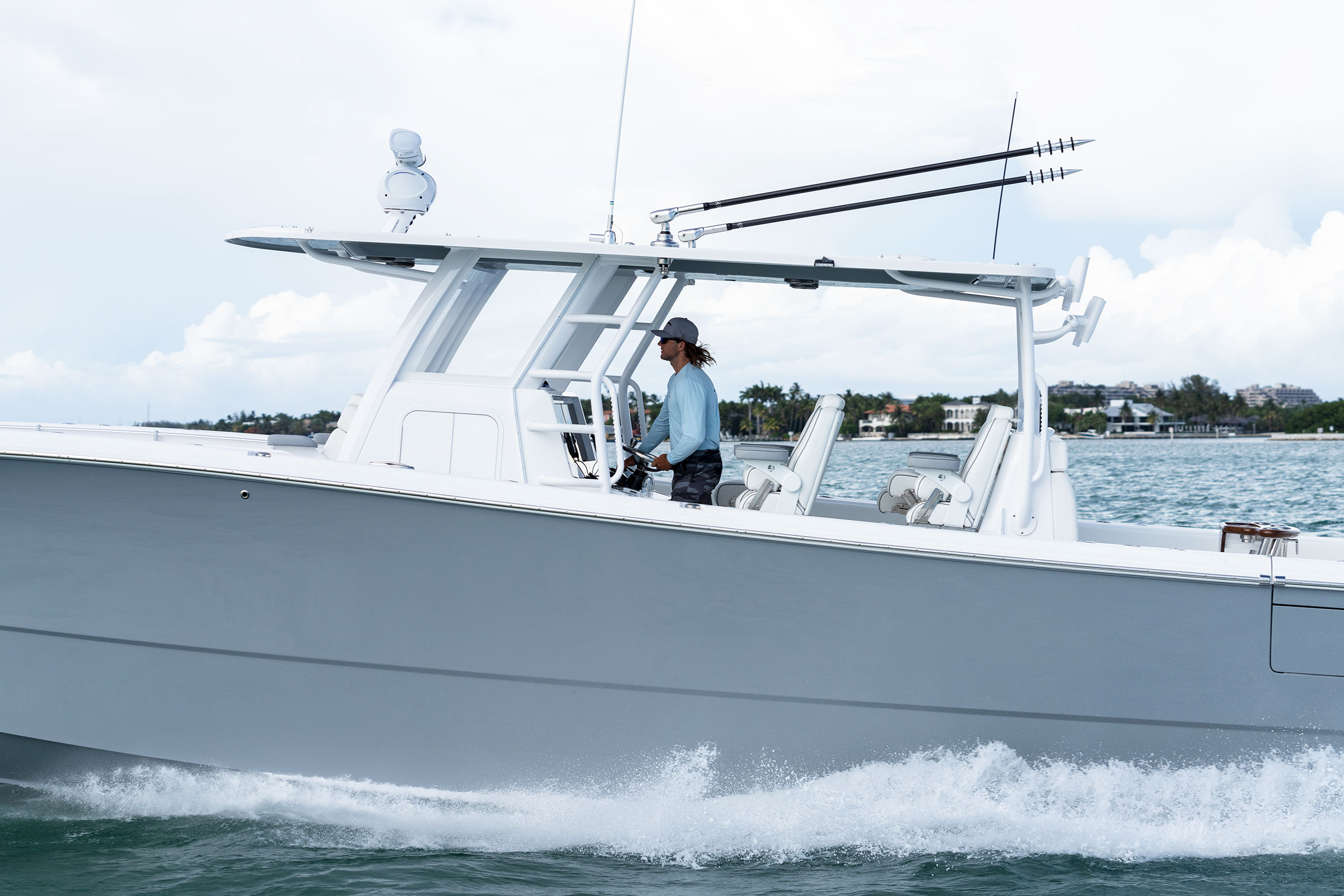

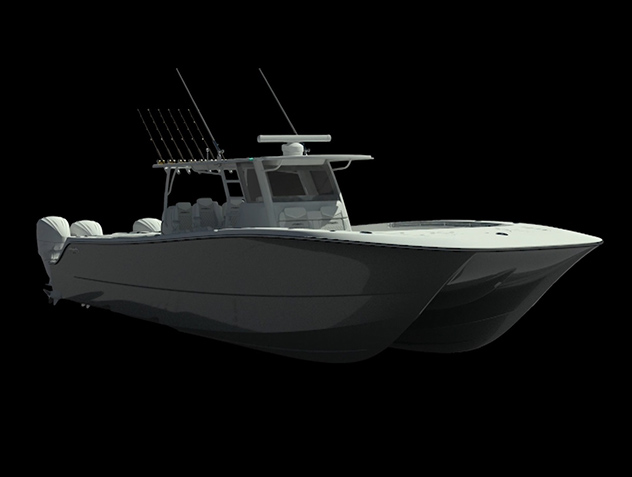

46’ Catamaran

Dreaming bigger. Because sometimes more is actually more.

The hull design that changed catamarans forever, taken to a whole new level. The ultimate offshore fishing machine, with unprecedented size, range and amenities to carry everyone and everything anywhere, in any conditions. A 46’ catamaran designed to efficiently achieve world-beating performance out of quad-outboard engines, while providing sportfish-level fishability and specifications. The new Invincible 46’ Catamaran. Like the Magnificent Frigate Bird, it will be king of all it surveys.

Specifications



Length Overall

45′ 11″

14m

Beam

12′

3.7m

Dead Rise at Transom

VARIABLE

VARIABLE

Weight

20,000 lbs

9,072 KG

Standard Fuel Capacity

1,000 GALLONS

3,000 LITRES

Maximum Horsepower

1,800 HP

1,800 HP

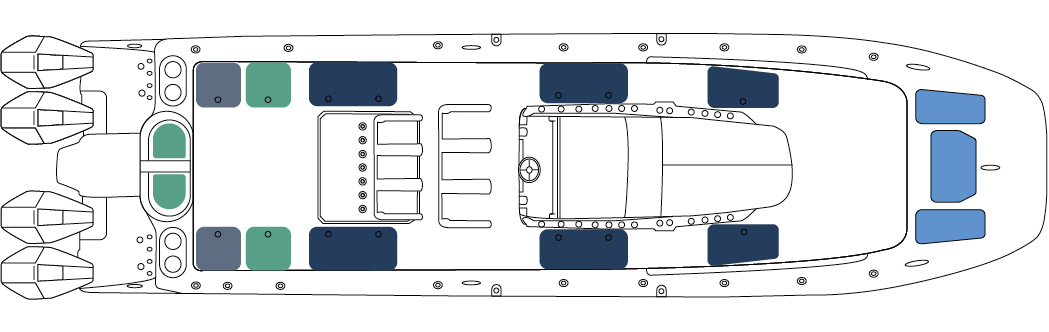

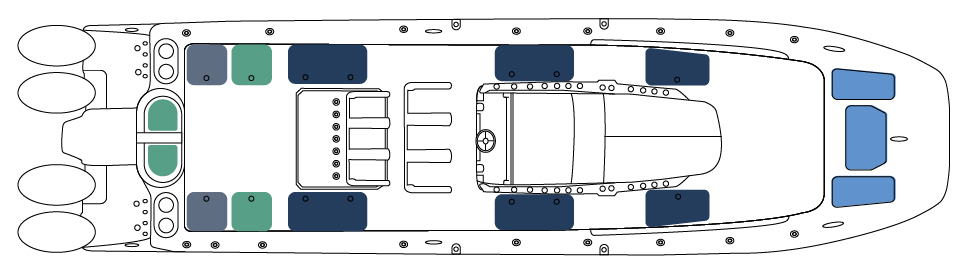

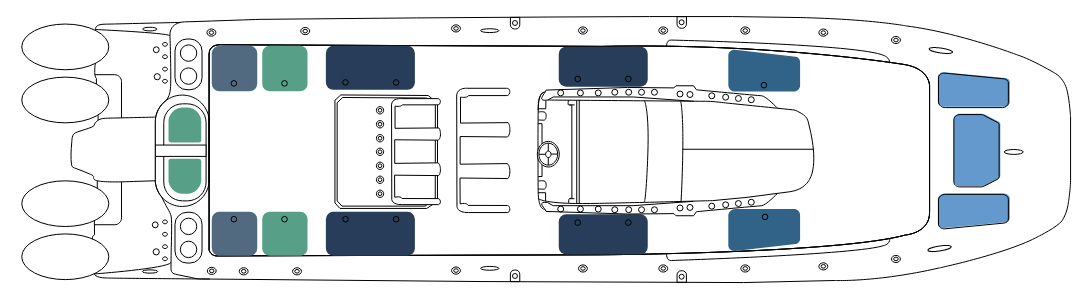

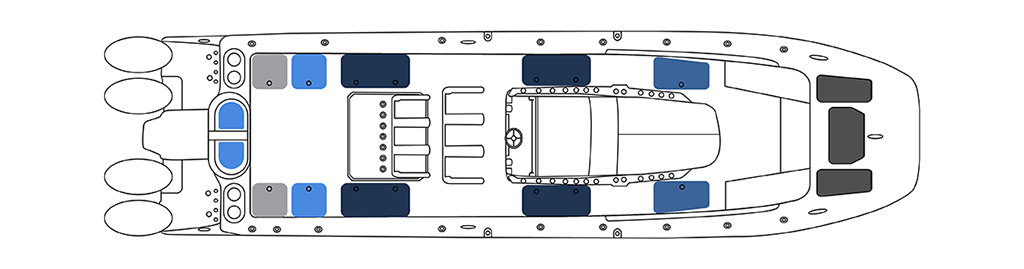

blueprints for boat

KEY

Insulated Fish Box

Anchor Locker

Livewell

Bilge Access

FEATURES

HIGHLIGHTED FEATURES





  • Single level deck
  • 360 walk around fishability
  • Patented catamaran hull design

STANDARD FEATURES





  • Above and Below Deck Livewells
  • AGM Sealed Batteries
  • Built-In Anchor Locker

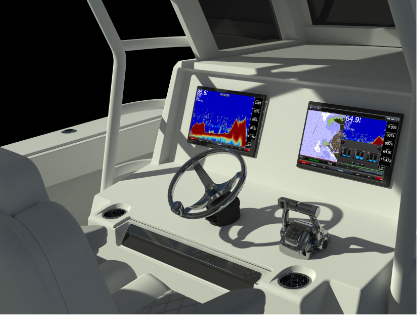

  • Deluxe Console with Fully-Lined Interior-Room for Full-Sized Head
  • Exceptionally Generous Under-Deck Storage
  • Finished Bilge
  • Under Gunnel Lighting
  • High-Speed Pickup for Livewell Seachest
  • Interior Console Lights
  • Saltwater Washdown
  • Three Automatic 2,000 GPH Bilge Pumps
  • Waterproof Switches and Circuit Breaker Protected System
  • 100% Vinylester Resin Hull
  • 316 Stainless-Steel Hardware
  • Vacuum-Bagged Cored Hull Construction

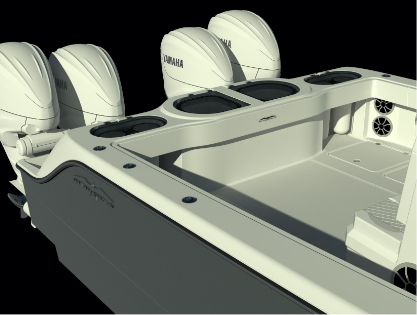

POWER OPTIONS





  • Quadruple 400 Mercury Verado
  • Quadruple 425 Yamaha XTO
  • Quadruple 450R Mercury Racing (5.44”)

CUSTOM TOP OPTIONS





  • Hardtop
  • Folding Tower w/ Dual Station
  • Hard Buggy Top Upgrade
  • Crows Nest for Hardtop w/ Ladder
  • LED Spreader Lights (each)
  • Rupp Top Gun Revolution Outriggers
  • Rupp Carbon Fiber Outrigger Upgrade
  • Gem Deluxe Outriggers w/ Carbon Fiber Poles
  • Gem 22′ Outrigger Upgrade (pair)
  • Rod Holders for Back of Hardtop (6)
  • Kingfish Rodholders (pair)
  • 3 Panel Polycarbonate Enclosure
  • 2 Panel Polycarbonate Wings
  • Windshield Enclosure
  • Windshield Tempered Glass Upgrade
  • Windshield 2 Panel Polycarbonate Wings
  • Hardtop Rear Support Legs
  • Double Rod Rack Upgrade (needs rear support)
  • Extend Hardtop (includes rear support)

FISHING ACCESSORY OPTIONS





  • Rod Holders on Side of Gunwale Additional (each)
  • Rod Holders on Console Vertical (each)
  • Rod Holders on Coffin Box (each)
  • Heavy Duty Swivel Rod Holders (each)
  • Livewell Seachest 2 pumps
  • Livewell Seachest 3 pumps
  • Livewell Seachest 4 pumps
  • Large Livewell Seachest 6 pumps
  • Additional High Speed Pickup
  • Above Deck Livewell Connections (each)
  • Clear Plexiglass Lid for Livewell (Floor Well)
  • Under Gunnel Rod Racks (each)
  • Under Gunnel Gaff Holders (each)
  • Electric Reel Outlets (each)
  • Colored Livewell (each)
  • Livewell Light (each)
  • Built-in Tuna Tube Upgrade (each)
  • In Floor Livewell – 70 gallons (each)

SEATING OPTIONS





  • Deluxe Bait Prep Tackle Station w/ Cooler
  • Triple Custom Llebroc Helm Chairs
  • Deluxe Back to Back Helm Seat w/ Built in cooler
  • Rear-facing Tackle Station Upgrade
  • Deluxe Flat-back Tackle Station
  • Fiberglass Cooler with Sliding Track System
  • Dual Row Seating Block + Pedestals
  • Front Fold-Out Bench Seats
  • Front Fold-Out Storage Lockers
  • Rear Fold-Out Jump Seats
  • Rear Lounge Seats (Removable)
  • Medium Coffin Box
  • Forward U-Shape Seating Section
  • Removable Backrest Cushion
  • XL Coffin Box
  • Backrest for XL Coffin Box
  • Extended Console-Coffin

ENHANCEMENT AND CONVENIENCE





  • Fancy Rigid Rubrail with Stainless Insert
  • Hull Side Dive Door w/ Ladder
  • Dive Ladder – Transom Pullout Style
  • Fresh Water Washdown
  • Hose Coil Kits for Fresh and Salt Washdowns
  • Additional Hose Coil Kit for Salt Washdown
  • Additional Hose Coil Kit for Fresh Washdown
  • Deluxe Electric Head in Console
  • Windlass in Hull w/ Custom Anchor and Bracket
  • SS Towing Eye Strike Plate Package
  • Under Water Lights LED – Blue & White (each)
  • PC1800 Battery System Upgrade
  • Battery Charger with Galvanic Isolator
  • Stainless Steel Cupholders on Gunwale (each)
  • Ultra Junior Float Switch Upgrade (each)
  • Upper Console Keeper

COLORS AND CANVAS OPTIONS





  • Custom One Color Gelcoat for Hull
  • Full Coaming Bolsters
  • Seadek Helm Pad
  • Seadek Console Exterior Package
  • Seadek Console Interior Package

COVER AND SHADE OPTIONS





  • Forward Bahama Shade
  • Aft Bahama Shade
  • Console Cover
  • Extended Console-Coffin Cover
  • Leaning Post Cover
  • Full Boat Cover to Rubrail
  • Full Boat Cover to Waterline
  • Medium Coffin Box Cover
  • L/XL Coffin Box Cover
  • Motor Cover (each)
  • Second Station Box Cover
